| Feature Value Filter height 50 cm Extractor height 44 cm Total height 94 cm Filter depth 56 cm Width 62 cm Cold water supply 1/2" Condensate drain to sewer 1" Inlet diameter Ø 150 mm Outlet diameter Ø 140-150 mm Feature | Value |
|---|---|
| Filter height | 50 cm |
| Extractor height | 44 cm |
| Total height | 94 cm |
| Filter depth | 56 cm |
| Width | 62 cm |
| Cold water supply | 1/2" |
| Condensate drain to sewer | 1" |
| Inlet diameter | Ø 150 mm |
| Outlet diameter | Ø 140-150 mm |
Technical Data Sheet
User Manual
HIGH TEMPERATURE
ASPIRATORS
+300°
Code. INOX.4.EBR280
AH systems use a recirculating water system, which drastically reduces water consumption compared to open-circuit systems. The water is automatically topped up and the condensate can be discharged directly into the sewage system.
ETC Group S.r.l. Sole Shareholder
Industrial area Pirano, Tavullia
Str. Delle Campagne, 10
61010 Tavullia PU - ITALY
Tel.
+39 0721 1839937
+39 0541 955062
+39 0541 1646150
WhatsApp-web +39 373 7755779
E-Mail DEPARTMENTS
informazioni@etcgroupsrl.biz
commerciale@etcgroupsrl.biz
tecnico@etcgroupsrl.biz
contabilita@etcgroupsrl.biz
VAT and Tax Code: IT 04083110405
Reg. of companies of Pesaro N. REA - PS – 196574
- Scrubbers for Wood-fired Ovens
- Scrubbers for Electric Ovens
- Scrubbers for Charcoal Grills
- Stainless Steel Exhaust Fans
Water Scrubbers and Smoke, Soot & Grease Collectors for Grills, Ovens and Biomass Systems
ETC Group water scrubbers and smoke collectors are designed to treat soot, grease, odours, aerosols and particulate generated by charcoal and wood-fired grills, professional barbecues, wood-fired ovens, biomass boilers, heat generators and commercial kitchens. The technology is based on a multi-stage hydrodynamic water reactor developed through more than 20 years of engineering research and industrial applications. The controlled gas flow promotes progressive particulate capture while maintaining low pressure loss, continuous operation and reduced maintenance without disposable mechanical filters. Performance has been independently validated by ACCREDIA-accredited laboratories, achieving particulate reduction exceeding 95.2% under certified test conditions.

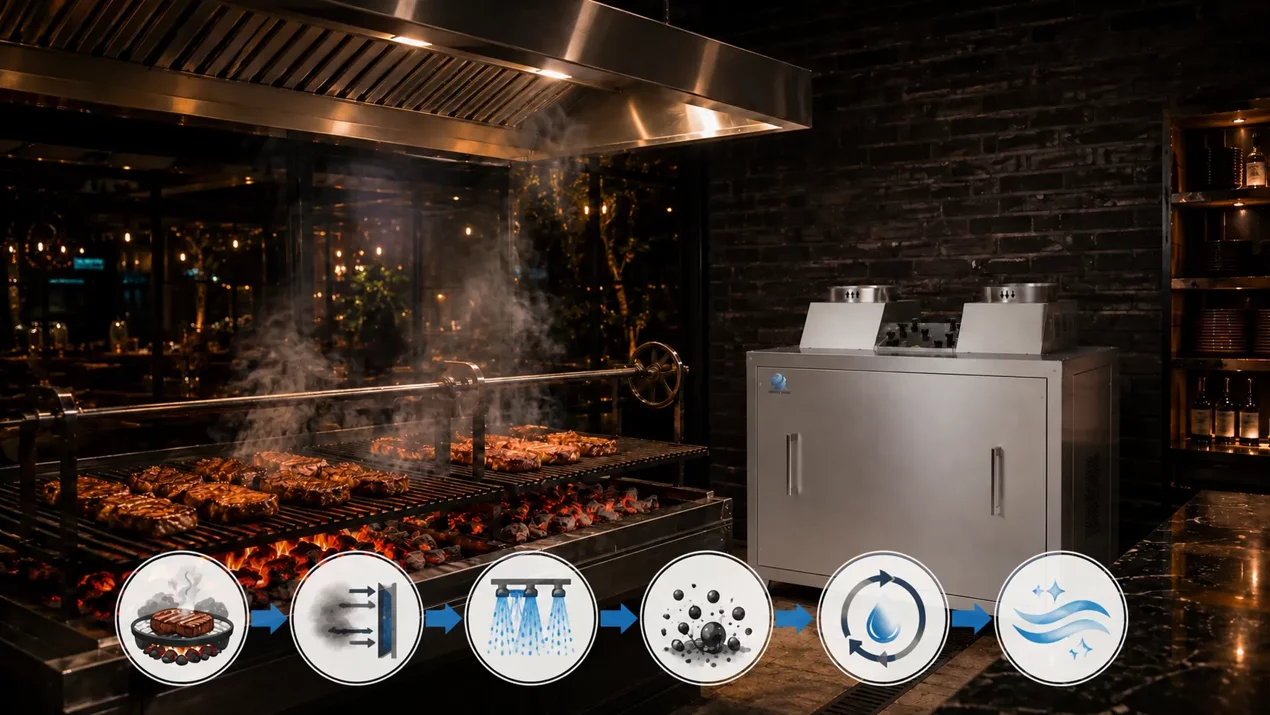

Water Scrubbers and Smoke Collectors for Charcoal and Wood-Fired Grills
Water Scrubbers and Smoke Collectors for Industrial Wood-Fired and Biomass Ovens
Water Scrubbers and Smoke Collectors for Biomass Boilers and Heat Generators
For restaurants, steakhouses, barbecue venues and commercial kitchens
ETC Group water scrubbers and smoke collectors are designed to treat smoke generated by charcoal and wood-fired grills, where combustion produces soot, grease aerosols, odours and fine particulate matter. The advanced multi-stage hydrodynamic water technology promotes progressive particulate capture through controlled fluid dynamics and water scrubbing, reducing emissions while protecting exhaust ductwork and improving long-term system reliability.
For civil, commercial and industrial heating systems
ETC Group water scrubbers are engineered to treat smoke produced by biomass boilers fired with wood, pellets, wood chips and other solid fuels. The advanced hydrodynamic water technology reduces combustion particulate, limits deposits inside flue systems and helps extend chimney service life while ensuring reliable, continuous operation with low maintenance requirements.
For pizzerias, bakeries and high-capacity cooking systems
Designed for the continuous treatment of smoke from wood-fired and biomass ovens, ETC Group systems reduce soot, fine ash and combustion particulate before discharge into the atmosphere. The multi-stage hydrodynamic water reactor maintains high performance during continuous operation, helping to keep flue systems cleaner, reduce maintenance requirements and improve overall emission control.
Why ETC Group Is Different?
Italian Engineering in 30+ Countries | Exported for Reputation, Not Distribution
We export our systems to over 30 countries across 5 continents. International presence built not on commercial distribution, but on technical product reputation and the trust of installers and engineers who choose them.
Laboratory-Verified Abatement Data | Real Performance, Not Claims
Our performance is measured, not claimed. Particulate abatement testing is performed by Accredia-accredited laboratories (reports 2876/19, 2877/19, 0995/25). Results: particulate reduction from 516.5 to 24.8 mg/Nm³. Real, verifiable numbers.
IMQ Certification | Only Italian Manufacturer
ETC Group is the only Italian soot abatement system manufacturer with IMQ certification. It is not a voluntary decorative brand: it is an independent technical verification that confirms genuine product compliance with European safety standards.
AH 400
AH 300 Plus+
AH 350
Closed-loop water scrubber for small-scale applications
Technical Specifications:
- Maximum capacity: up to 2,500 m³/h
- Connection: Ø 300 mm
- Pump power: 1.3 kW
- Ideal applications: Small charcoal grills, pellet stoves, biomass boilers up to 250 kW
- Certifications: IMQ N° 242 — CE Declaration of Conformity
Description: The AH 300 Plus+ captures PM2.5, PM10, and soot through an internal fluid dynamic geometry developed by ETC Group across 10,000+ hours of research. Water circulates in a closed loop — zero losses during operation, only natural evaporation. Adjustable tank ~140 liters. In 10 years no competitor has replicated this configuration.
Benefits:
✓ Closed-loop circulation — zero water consumption during operation
✓ Zero filters to replace — the internal geometry does all the work
✓ Compact Ø 300 mm, 1.3 kW — maximum efficiency in minimum footprint
✓ IMQ N° 242 — the only independent technical certification in the sector in Italy
Rollé system water scrubber for high professional throughput
Technical Specifications:
- Maximum capacity: up to 5,000 m³/h
- Connection: Ø 400 mm
- Pump power: 1.35 kW
- Ideal applications: Large charcoal grills, wood-fired chicken rotisseries, bakery wood ovens, biomass and wood boilers
- Certifications: IMQ N° 242 — CE Declaration of Conformity
Description: The AH 400 integrates the Rollé system — an internal configuration that optimizes the fume path through the second wash stage, increasing contact time between atomized water and particulate. Capacity up to 5,000 m³/h, adjustable tank ~270 liters, closed-loop circulation. Acoustic emission ≤70 dB(A). Full AISI 304 stainless steel construction.
Benefits:
✓ Rollé system — increased water/fume contact time, optimized abatement
✓ 5,000 m³/h on just 1.35 kW pump — measurable energy efficiency
✓ AISI 304 stainless steel — built for continuous h24 operation without degradation
✓ IMQ N° 242 + CE — dual compliance certified by independent bodies
Dual-wash Plus Enterprise water scrubber for medium-scale applications
Technical Specifications:
- Maximum capacity: up to 4,500 m³/h
- Connection: Ø 350 mm
- Pump power: 1.85 kW
- Ideal applications: Charcoal grills, wood-fired rotisseries, professional wood-fired ovens, biomass boilers
- Certifications: IMQ N° 242 — CE Declaration of Conformity
Description: The AH 350 scales capacity up to 4,500 m³/h while maintaining the same proprietary ETC Group fluid dynamic geometry. The Dual-Wash Plus Enterprise system atomizes and swirls fumes through two successive stages, precipitating PM2.5, PM10, soot, and grease into the adjustable-volume tank (~210 liters). Closed-loop water circulation, continuous h24 operation.
Benefits:
✓ Dual-stage washing — efficiency >95% even on fumes heavy with grease and dense soot
✓ 4,500 m³/h capacity — suited to professional kitchens and high-output ovens
✓ Closed-loop circulation — zero water loss during operation
✓ IMQ N° 242 — independent technical verification, not a voluntary label
Plus Versions — Upgrade available on all models
AH 600
AH 500
Multi-stage Enterprise water scrubber for large industrial plants
Technical Specifications:
- Maximum capacity: up to 10,000 m³/h
- Connection: Ø 500 mm (customizable)
- Pump power: 3 kW
- Ideal applications: Large charcoal and wood grills, industrial wood-fired ovens, high-power biomass boilers, industrial combustors
- Certifications: IMQ N° 242 — CE Declaration of Conformity
Description: The AH 500 handles flows up to 10,000 m³/h with the multi-stage Enterprise water washing system. No mechanical filters — the internal geometry and multi-stage atomization precipitate PM2.5, PM10, soot, and grease into the adjustable tank (~500 liters). Closed-loop circulation with minimum daily top-up. Continuous h24 operation, emission ≤70 dB(A).
Benefits:
✓ 10,000 m³/h — industrial scale with technology proven across professional installations
✓ Multi-stage without mechanical filters — zero consumable costs, zero scheduled downtime
✓ ~500 L adjustable tank — adaptable to real operating conditions
✓ IMQ N° 242 — the only independent technical certification in the sector in Italy
High-power Enterprise water scrubber — the top of the AH range
Technical Specifications:
- Maximum capacity: up to 14,000 m³/h
- Connection: Ø 600 mm (customizable)
- Pump power: 2.2 kW three-phase 380V
- Ideal applications: Large industrial charcoal and wood plants, high-capacity professional bakeries, high-power biomass and pellet boilers, industrial combustors with heavy carbon emissions
- Certifications: IMQ N° 242 — CE Declaration of Conformity
Description: The AH 600 is the flagship model of the AH series — 14,000 m³/h, multi-stage Enterprise system, high-efficiency atomization, adjustable tank ~500 liters in closed-loop circulation. Engineered for continuous h24 operation under the most demanding conditions. Abatement >95% on particulate, soot, and grease. Odor reduction up to 70%. Zero mechanical filters to replace throughout the entire operational life of the machine.
Benefits:
✓ 14,000 m³/h — maximum capacity in the range, for large industrial installations
✓ 2.2 kW three-phase — energy efficiency maintained at maximum throughput
✓ Zero mechanical filters — no consumables, no scheduled machine downtime
✓ IMQ N° 242 — independent technical verification on the most powerful model in the range
Every AH model can be upgraded with an additional washing stage
Description: The Plus version introduces a second water washing stage added to the main cycle, multiplying contact time between fumes and atomized water. The result is the highest level of treatment technically achievable with water scrubber technology — no additional filters, no consumables. Recommended for environments with exceptionally high soot production, heavy grease loads, or intense odors: high-output grills, continuous-cycle industrial ovens, boilers running on variable-quality solid fuels. The upgrade is available across the entire range — from the AH 300 Plus+ to the AH 600 — and integrates into the same compact structure as the base unit.
Benefits:
✓ Additional second stage — double water/fume contact, abatement at the top of the range
✓ Available on all AH models — same engineering philosophy, maximized performance
✓ Ideal for critical environments — high temperatures, heavy grease loads, dense soot
✓ Zero additional filters — the upgrade acts on fluid dynamic geometry, not on consumables
Frequently Asked Questions (FAQ) on Soot Scrubbers
How does a water scrubber work for smoke treatment?
A water scrubber treats combustion smoke by passing the airflow through a sequence of water washing stages, controlled fluid dynamic changes and permanently wetted surfaces. ETC Group systems use a multi-stage hydrodynamic reactor designed to progressively increase the interaction between smoke and water, promoting the capture of soot, particulate matter and grease aerosols. The system is engineered to maintain low pressure loss, continuous operation and does not require disposable mechanical filters.
Can a water scrubber also reduce odours?
Water treatment helps reduce part of the compounds responsible for odours, although its effectiveness depends on the composition of the smoke and the combustion process. Where higher odour reduction is required, the system can be integrated with post-treatment technologies such as ozone generators, electrostatic filters or activated carbon filters, selected according to the specific application.
Which applications can use an ETC Group water scrubber?
ETC Group water scrubbers are designed for treating smoke generated by charcoal and wood-fired grills, professional barbecues, steakhouses, wood-fired ovens, bakeries, biomass boilers, heat generators, coffee roasters and many industrial applications. Each system is sized according to airflow rate, smoke temperature and the specific characteristics of the process.
Why is smoke from charcoal grills more difficult to treat?
Smoke generated by charcoal grilling contains soot, fine particulate matter, grease aerosols, organic vapours and odorous compounds at the same time. This combination makes the treatment process more demanding than many other combustion applications. ETC's multi-stage hydrodynamic technology is specifically designed to progressively increase the interaction between smoke and water, improving the capture of particulate matter and grease aerosols throughout the treatment process.
What is the difference between a water scrubber and a traditional scrubber?
Both technologies use water as the treatment medium, but the main difference lies in the reactor design. ETC systems guide the smoke through a carefully engineered flow path featuring controlled directional changes, multiple washing stages and fluid dynamic variations that progressively increase the interaction between particulate matter and water. The objective is to achieve high treatment efficiency while maintaining low pressure loss and reduced maintenance.
Do ETC Group water scrubbers require replacement mechanical filters?
No. The primary treatment process takes place through the interaction between smoke and water inside the hydrodynamic reactor. There are no disposable mechanical filters that require periodic replacement. Routine maintenance mainly consists of cleaning the unit, checking the spray nozzles and managing the water according to the instructions provided in the operation and maintenance manual.
Can a water scrubber be installed on an existing chimney system?
In most cases, yes. ETC water scrubbers can be installed on existing flue systems after evaluating the chimney configuration, airflow rate, smoke temperature, available fan pressure and installation space. Each installation should be assessed individually to identify the most suitable technical solution.
How do I choose the most suitable water scrubber?
Selecting the correct model depends on several technical factors, including the type of fuel, airflow rate, smoke temperature, chimney configuration, operating hours and the treatment objectives. Proper sizing ensures the best balance between treatment efficiency, system reliability, ease of maintenance and energy consumption.
Why is pressure loss important in smoke treatment systems?
Every exhaust system operates with a limited amount of available fan pressure. A scrubber with excessive pressure loss may reduce airflow and compromise the overall performance of the installation. For this reason, ETC reactors are engineered to provide high treatment efficiency while keeping aerodynamic resistance as low as possible.
Why does ETC Group use multi-stage hydrodynamic technology?
Treatment efficiency depends not only on the amount of water used but also on how the smoke flows through the reactor. ETC's multi-stage hydrodynamic technology guides the smoke through a sequence of washing stages, flow section variations and permanently wetted surfaces, progressively increasing the probability of particulate capture. This engineering concept, developed through more than twenty years of experience, allows the construction of compact, reliable systems designed for continuous operation.
