Feature Value Filter height 50 cm Extractor height 44 cm Total height 94 cm Filter depth 56 cm Width 62 cm Cold water supply 1/2" Condensate drain to sewer 1" Inlet diameter Ø 150 mm Outlet diameter Ø 140-150 mm Feature | Value |
---|---|
Filter height | 50 cm |
Extractor height | 44 cm |
Total height | 94 cm |
Filter depth | 56 cm |
Width | 62 cm |
Cold water supply | 1/2" |
Condensate drain to sewer | 1" |
Inlet diameter | Ø 150 mm |
Outlet diameter | Ø 140-150 mm |
Technical Data Sheet
User Manual
HIGH TEMPERATURE
ASPIRATORS
+300°
Code. INOX.4.EBR280
ETC Group S.r.l. Sole Shareholder
Industrial area Pirano, Tavullia
Str. Delle Campagne, 10
61010 Tavullia PU - ITALY
Tel.
+39 0721 1839937
+39 0541 955062
+39 0541 1646150
WhatsApp-web +39 373 7755779
E-Mail DEPARTMENTS
informazioni@etcgroupsrl.biz
commerciale@etcgroupsrl.biz
tecnico@etcgroupsrl.biz
contabilita@etcgroupsrl.biz
VAT and Tax Code: IT 04083110405
Reg. of companies of Pesaro N. REA - PS – 196574
- Scrubbers for Wood-fired Ovens
- Scrubbers for Electric Ovens
- Scrubbers for Charcoal Grills
- Stainless Steel Exhaust Fans
€7930.00 (In Stock)

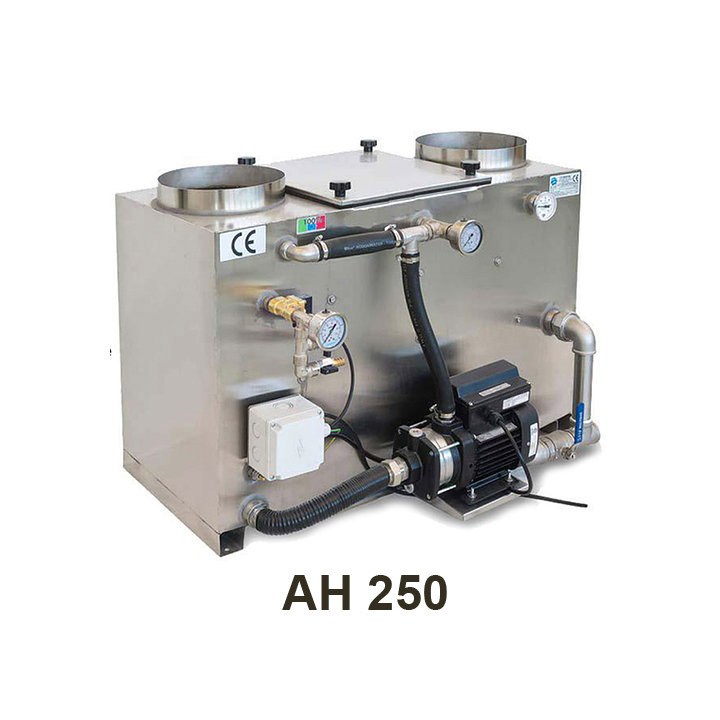

The AH Ø250 soot scrubbers are an ideal solution for wood-fired pizza ovens. Their certified capacity exceeds 95% of soot treatment produced by wood combustion in pizza ovens.
Easy to install, they can be placed both indoors and outdoors.
Due to their water-based operation, they are excellent fire prevention devices, thus avoiding the risk of the chimney catching fire. Their continuous operation, in addition to 100% preventing combustion soot and also solving the problem with neighbors, keeps the entire chimney clean for a very long time.
The soot scrubbers from the AH ETC GROUP SRL range are eco-friendly devices, helping the environment and improving the air we breathe.
Upon request, the machine can be equipped with 4.0 technology
AH 250 can reduce up to 19,243 kg of CO2/year
CarbonFree-CF19K:
The technology that captures up to 19,243 kg of CO2 per year, making the air cleaner, one step at a time.
Width 940 mm
Depth 610 mm
Height 670 mm
Empty weight: 57 kg
Water content: 63 liters
Operating weight: 120 kg
Smoke inlet and outlet: Ø 250 mm
Air flow: 350 m³/h (static measurement, with the machine disconnected from the chimney: exit speed >2m/s on outlet d. 250 mm).
Very low electrical power 0.55 kw
Pump type: Cm 5-3
Water consumption: 63 liters per day plus the water consumed for evaporation*
Built in stainless steel 304
