Feature Value Filter height 50 cm Extractor height 44 cm Total height 94 cm Filter depth 56 cm Width 62 cm Cold water supply 1/2" Condensate drain to sewer 1" Inlet diameter Ø 150 mm Outlet diameter Ø 140-150 mm Feature	Value
Filter height	50 cm
Extractor height	44 cm
Total height	94 cm
Filter depth	56 cm
Width	62 cm
Cold water supply	1/2"
Condensate drain to sewer	1"
Inlet diameter	Ø 150 mm
Outlet diameter	Ø 140-150 mm

Technical Data Sheet

User Manual

HIGH TEMPERATURE

ASPIRATORS

+300°

Code. INOX.4.EBR280

ETC Group S.r.l. Sole Shareholder

Industrial area Pirano, Tavullia

Str. Delle Campagne, 10

61010 Tavullia PU - ITALY

For truck route click Here

Tel.

+39 0721 1839937

+39 0541 955062
+39 0541 1646150

WhatsApp-web +39 373 7755779

E-Mail DEPARTMENTS

informazioni@etcgroupsrl.biz

commerciale@etcgroupsrl.biz

tecnico@etcgroupsrl.biz

contabilita@etcgroupsrl.biz

VAT and Tax Code: IT 04083110405

Reg. of companies of Pesaro N. REA - PS – 196574

- Soot Scrubbers

- Hoods without Chimney

- Water-operated Hood

- Scrubbers for Wood-fired Ovens

- Scrubbers for Electric Ovens

- Scrubbers for Charcoal Grills

- Ozone Generators

- Filters for Kitchen Hoods

- Stainless Steel Exhaust Fans

- Active Carbon Purifiers

- Electrostatic Filters

- Hood with UV-C Lamps

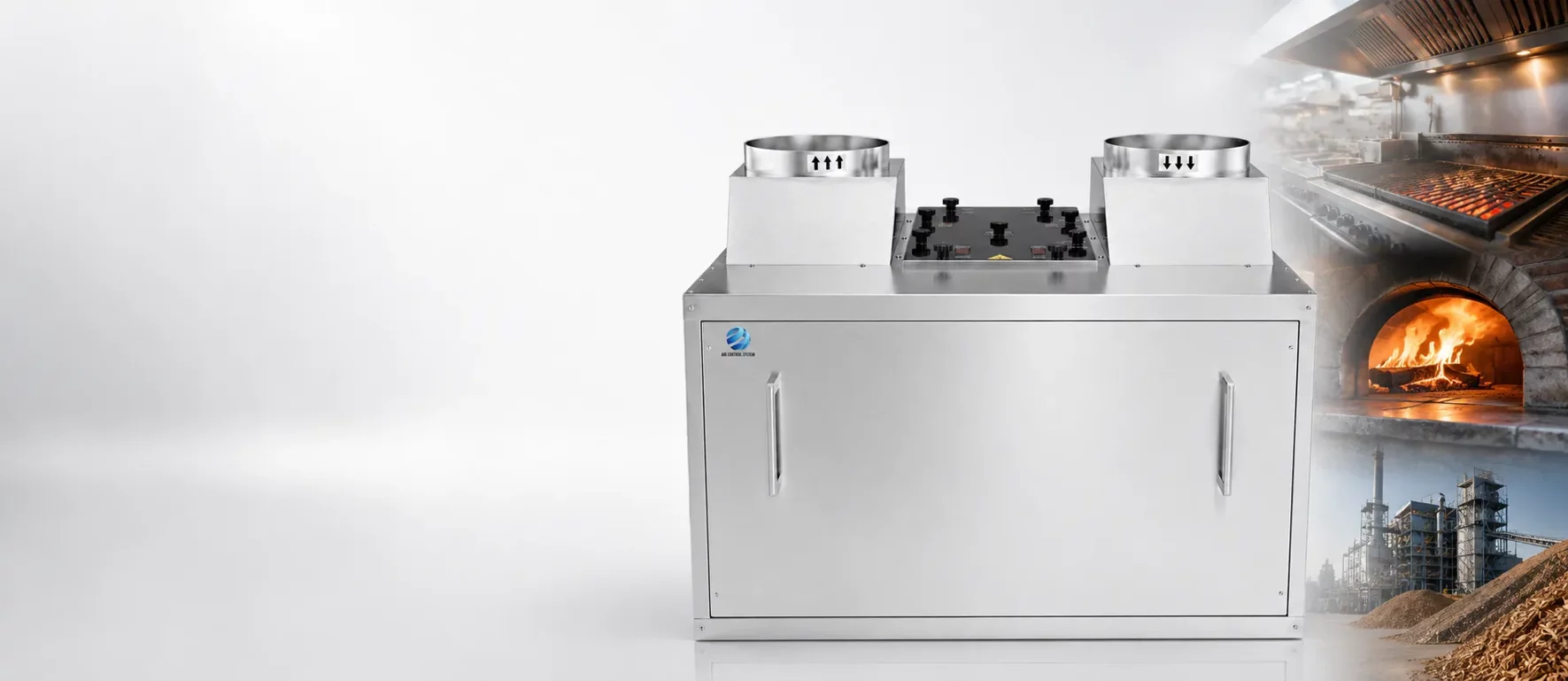

AH300 Plus+ – Enhanced Soot and Smoke Scrubber for Wood-Fired Ovens, Biomass Boilers and High-Temperature Combustion

The AH300 Plus+ is an advanced smoke and soot scrubber designed for intensive applications such as charcoal grills, wood-fired ovens, and biomass combustion. Featuring reinforced washing stages, a high-performance pump, and stainless steel construction, it delivers maximum efficiency with low water waste. Ideal for professional kitchens, bakeries, biomass heating systems and urban installations, the AH300 Plus+ ensures clean air and environmental compliance.

ok-abbatitori-di-fuligine-per-forni-a-legna-pizzeria-ah-300+-w

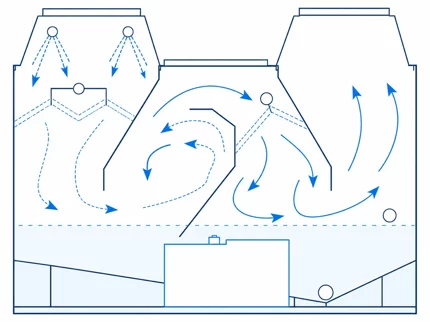

Internal Fluid Dynamics of the AH 300

Call Us Now

🔧 Advanced Washing System, Increased Power and Optimized Airflow

The AH300 Plus+ is a powerful evolution of the standard AH300 model, carefully engineered to meet the demands of high-temperature combustion and continuous-duty operation in commercial environments. While retaining the core design of the original AH300, this upgraded version integrates multiple enhancements that significantly boost its overall performance, reliability, and adaptability across a wider range of applications.

At the core of these improvements are custom-designed stainless steel inlet and outlet hoppers, which not only streamline the flow of air and smoke but also reduce internal turbulence, resulting in a more stable and effective washing cycle. The inlet hopper now incorporates a dedicated pre-washing chamber, equipped with two high-efficiency spiral spray nozzles, which provide an aggressive and immediate first stage of treatment. This stage reduces the temperature of incoming fumes, captures large soot particles early in the process, and protects the main internal wash nozzles from fouling or clogging.

The upgrade also includes a new 1.3 kW high-capacity centrifugal pump, which offers double the hydraulic power of the standard AH300 model. Thanks to this increased washing force, the AH300 Plus+ can efficiently process airflows exceeding 3,000 m³/h, without compromising filtration effectiveness or increasing operational complexity. The result is a machine that can withstand demanding installations such as charcoal grills with open flames, dual-chamber pizza ovens, or biomass boilers with variable or discontinuous loads.

Taking inspiration from the superior performance of the larger AH350, AH400, AH500 and AH600 models, the AH300 Plus+ delivers similar results in a more compact and versatile configuration. This makes it ideal for tight utility rooms, mobile kitchens, technical containers, or rooftop installations, especially in areas where space is limited but emissions control is non-negotiable.

The fully integrated three-stage hydraulic cleaning system ensures maximum contact between water and airborne pollutants, achieving high levels of soot and odor reduction while keeping internal components cleaner for longer. The first wash acts as a thermal and mechanical barrier, the second ensures complete saturation and particle capture, and the third stage finishes the process by stripping away remaining vapors and fine residues.

Moreover, the modular and service-friendly layout of the AH300 Plus+ means that maintenance is easier, faster, and less frequent. The combined effect of higher washing efficiency, improved flow dynamics, and more robust components translates into a longer machine lifespan, lower water and energy consumption, and more stable filtration performance, even under sustained heavy use.

Whether installed in restaurants, biomass facilities, or grilling stations, the AH300 Plus+ guarantees cleaner air, quieter operation, and full compatibility with European power and safety standards (230/400V) — making it a smart and sustainable choice for today’s demanding commercial kitchens and industrial combustion systems.

User Manual

Technical Data Sheet

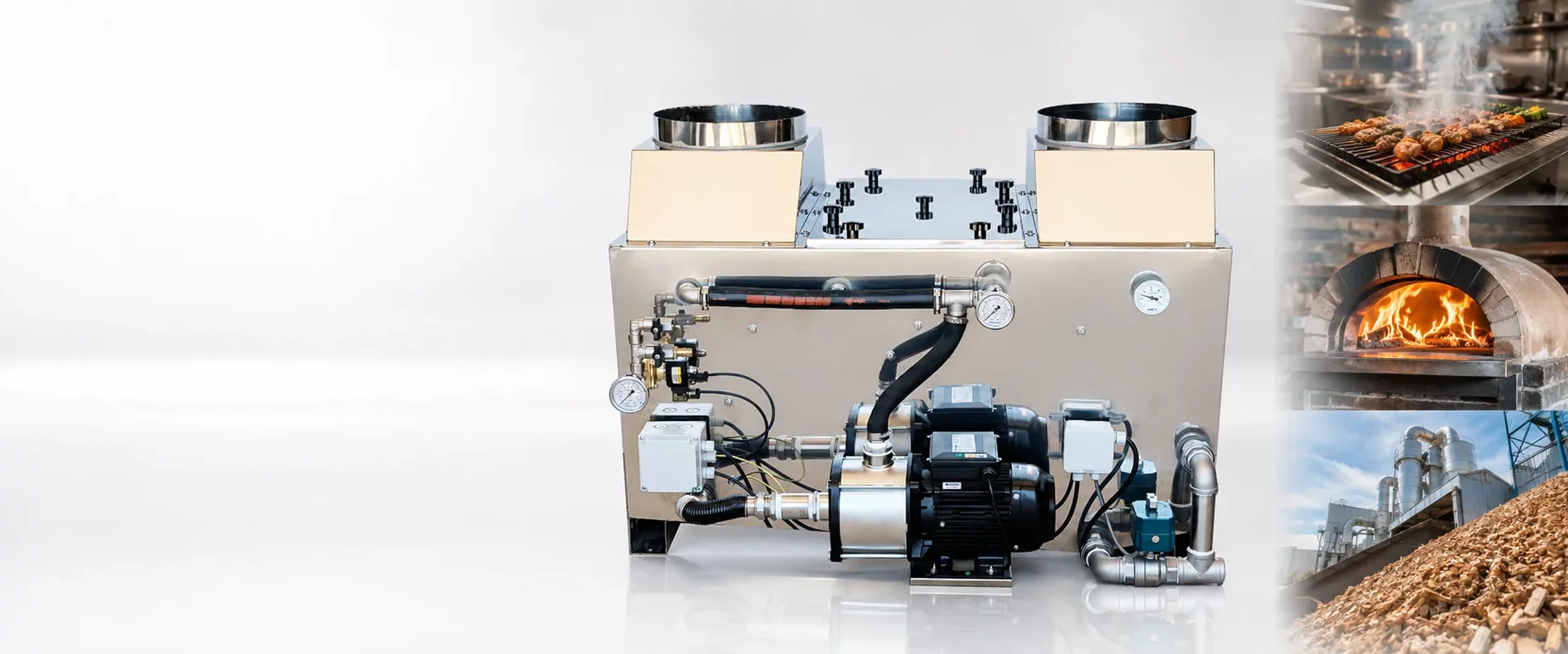

– Industrial-Grade Build, Functional Advantages and Technical Specifications

Industrial-Grade Build, Functional Advantages and Detailed Technical Specifications

The AH300 Plus+ has been engineered to provide long-term durability, advanced filtration efficiency, and extremely low maintenance in compact form. Its full stainless-steel construction (AISI 304) ensures corrosion resistance even in harsh environments exposed to steam, soot, and high temperatures. Every component in contact with water or combustion fumes—tank, piping, hoppers, nozzles, valves—is designed for maximum reliability and hygiene, in compliance with the most demanding food and industrial standards.

At the core of the system is a 1.3 kW stainless steel centrifugal pump, a key upgrade that delivers twice the washing power of the standard AH300 model. This allows the AH300 Plus+ to effectively treat higher volumes of polluted air, with increased washing pressure and water coverage across all stages of the scrubber.

A unique feature of this model is its integrated pre-washing chamber inside the inlet hopper, which features two additional spiral spray nozzles. This early-stage wash reduces the thermal shock of incoming hot gases, begins particle separation earlier in the process, and significantly extends the efficiency and lifespan of downstream components. It also helps reduce fouling of the main spray arms, cutting down on maintenance intervals.

The dynamic internal flow geometry, combined with the three-stage washing system and optimized air-water contact, guarantees over 95% reduction in carbon particulate, and over 80% odor abatement, without the use of chemicals or filter cartridges. The recycled water loop minimizes waste and supports environmentally responsible operation.

Designed for real-world professional applications, the AH300 Plus+ is particularly suitable for:

Wood-fired ovens (single or dual, with high thermal output)

Biomass boilers up to 250 kW

Charcoal grills and open-flame cooking systems

Pellet or log stoves used in commercial or industrial contexts

Smoke filtration in confined or urban spaces

The outgoing air is saturated with steam but completely free of soot, visible particles, or grease, ensuring full compliance with emissions regulations and environmental health standards. The unit runs quietly at under 68 dB(A), making it ideal even for installations in city centers or close to residential zones.

Its modular design makes the AH300 Plus+ easy to service, transport, and integrate into both new and existing ventilation systems. Optional accessories include external waterproof covers, inline filters for water treatment, automatic drain valves, and remote monitoring kits for advanced control and diagnostics.
