| Feature Value Filter height 50 cm Extractor height 44 cm Total height 94 cm Filter depth 56 cm Width 62 cm Cold water supply 1/2" Condensate drain to sewer 1" Inlet diameter Ø 150 mm Outlet diameter Ø 140-150 mm Feature | Value |
|---|---|
| Filter height | 50 cm |
| Extractor height | 44 cm |
| Total height | 94 cm |
| Filter depth | 56 cm |
| Width | 62 cm |
| Cold water supply | 1/2" |
| Condensate drain to sewer | 1" |
| Inlet diameter | Ø 150 mm |
| Outlet diameter | Ø 140-150 mm |
Technical Data Sheet
User Manual
HIGH TEMPERATURE
ASPIRATORS
+300°
Code. INOX.4.EBR280
AH systems use a recirculating water system, which drastically reduces water consumption compared to open-circuit systems. The water is automatically topped up and the condensate can be discharged directly into the sewage system.
ETC Group S.r.l. Sole Shareholder
Industrial area Pirano, Tavullia
Str. Delle Campagne, 10
61010 Tavullia PU - ITALY
Tel.
+39 0721 1839937
+39 0541 955062
+39 0541 1646150
WhatsApp-web +39 373 7755779
E-Mail DEPARTMENTS
informazioni@etcgroupsrl.biz
commerciale@etcgroupsrl.biz
tecnico@etcgroupsrl.biz
contabilita@etcgroupsrl.biz
VAT and Tax Code: IT 04083110405
Reg. of companies of Pesaro N. REA - PS – 196574
- Scrubbers for Wood-fired Ovens
- Scrubbers for Electric Ovens
- Scrubbers for Charcoal Grills
- Stainless Steel Exhaust Fans
NEXION: Next-Generation Plasma Solutions for Pristine Kitchen Air
Experience the future of commercial ventilation with NEXION, the modular plasma ionization system designed to completely neutralize smoke, grease, and odors. Thanks to its superior PM10 and PM2.5 filtration and seamless universal integration, NEXION guarantees pure air and full regulatory compliance, maximizing the performance of your current extraction setup.
01
02
The Future of Filtration: NEXION and Advanced Electrostatic Ionization
NEXION: Plasma Power for a Smoke and Odor-Free Kitchen
Say goodbye once and for all to persistent smoke and intrusive odors that can drift into dining areas or neighboring premises. The NEXION system does more than just filter air; it completely regenerates it through powerful plasma ionization. This cutting-edge technology works at a molecular level, breaking down grease particles and neutralizing the most stubborn odor molecules typical of high-intensity professional cooking. Choosing NEXION means guaranteeing an impeccable working environment, eliminating neighbor complaints, and keeping kitchen surfaces free from oily residues, with a performance level that traditional mechanical filters simply cannot match.
The evolution of air treatment enters the kitchen with NEXION electrostatic precipitators. By overcoming the limitations of standard mechanical filtration, this system utilizes high-precision electric fields and plasma technology to capture even the micro-particles invisible to the naked eye. It is the perfect solution for those seeking technical excellence: a system capable of maintaining constant airflow efficiency over time without the pressure drops typical of older technologies. Thanks to its robust and technological core, NEXION represents a smart long-term investment, drastically reducing maintenance costs and ensuring operational longevity far superior to the industry average.
04
03
NEXION: The Modular Vanguard in Professional Air Treatment
Pure Air, Zero Compromise: Total PM10 and Odor Abatement with NEXION
Why adapt your kitchen to a filter when the filter can adapt to your kitchen? The distinctive strength of NEXION lies in its highly modular design and its capacity for universal integration. Whether it is a small bistro or a large-scale industrial canteen, NEXION units can be configured and combined to handle any volume of air, fitting perfectly into existing extraction systems. This flexibility allows for unprecedented scalability: you can upgrade your system at any time, consistently ensuring maximum effectiveness in removing grease and odors, regardless of the complexity of your architectural layout or hood configuration.
The health of your staff and environmental responsibility allow for no shortcuts. NEXION filters are specifically engineered for the certified abatement of PM10 and PM2.5 fine particles, which are the primary pollutants in professional kitchen indoor environments. Through the electrostatic precipitation process, even the most infinitesimal particles are electrically charged and captured with an efficiency reaching 99%. With NEXION, you ensure your business remains in full compliance with current air quality regulations, transforming harmful emissions into a purified, deodorized, and safe airflow for public health and environmental safety.
02
01

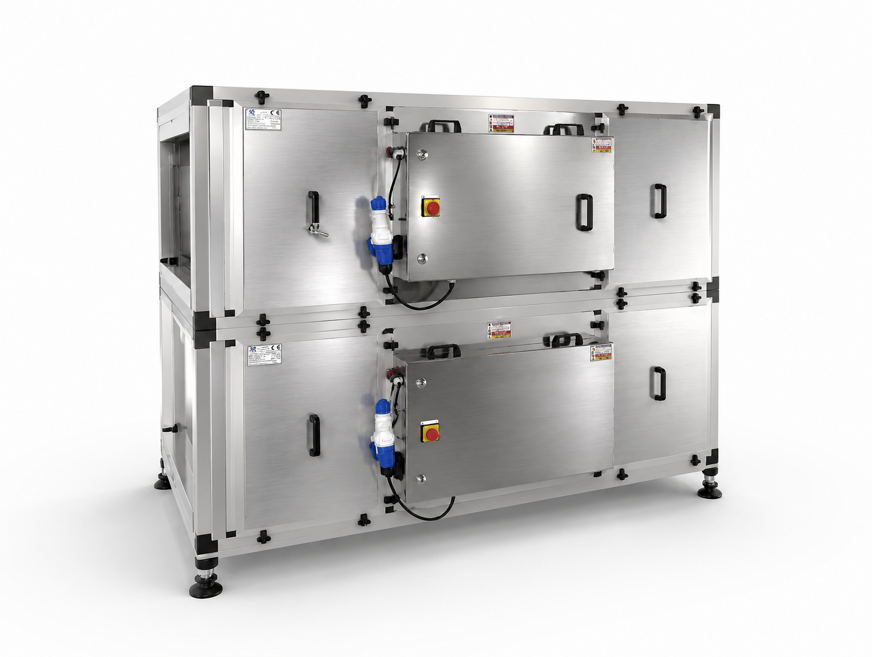

NEXION — Electrostatic Cold Plasma Filter for Professional Kitchens — Single Stage

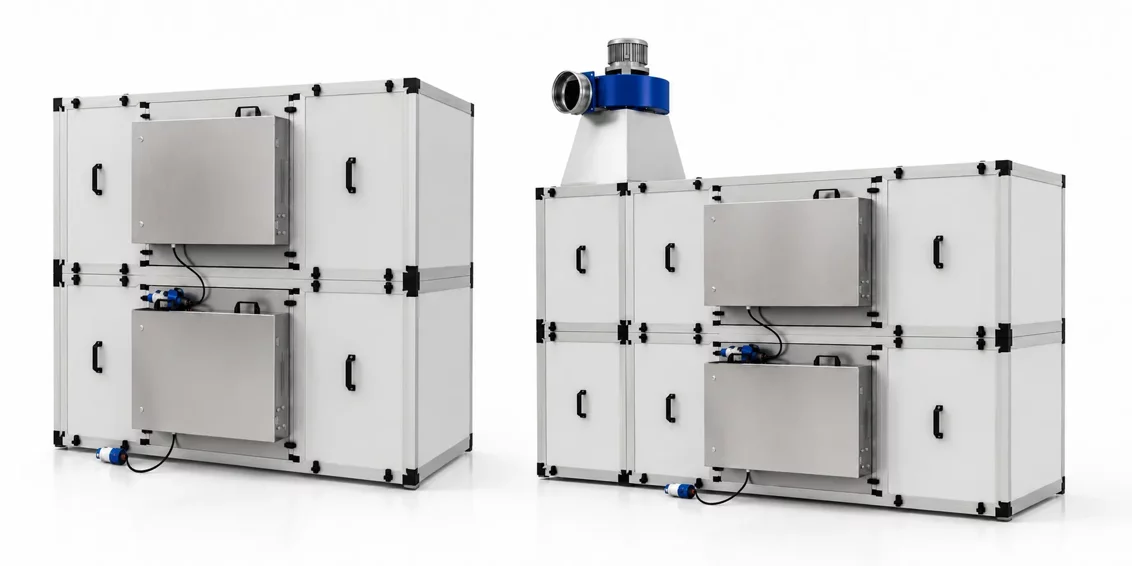

NEXION X — Cold Plasma Electrostatic Precipitator Double Stage for Charcoal Grills and Barbecue
Same enclosure, longer body, double filtration.
Designed for charcoal grills, barbecue restaurants and high grease production environments.
Particulate removal efficiency 95% — odour reduction 80%.
NEXION X35
3,500 m³/h — 300 W — 65 kg
1,100 × 730 × 730 mm
NEXION X52
5,200 m³/h — 600 W — 95 kg
1,100 × 1,100 × 730 mm
NEXION X70
7,000 m³/h — 600 W — 110 kg
1,100 × 1,300 × 730 mm
Three flow rates available to suit any ventilation system.
Particulate removal efficiency 90% — odour reduction 70%.
NEXION 35
3,500 m³/h — 150 W — 45 kg
700 × 730 × 730 mm
NEXION 52
5,200 m³/h — 300 W — 65 kg
700 × 1,100 × 730 mm
NEXION 70
7,000 m³/h — 300 W — 78 kg
700 × 1,300 × 730 mm
04
03
NEXION — CE Certified Cold Plasma Smoke Filter — Warranty and Technical Support
NEXION — Smoke and Grease Removal with Electrostatic Ionisation — No Disposable Filters
NEXION complies with European Directives
2014/35/EU (LVD) · 2014/30/EU (EMC) · 2011/65/EU (RoHS)
Standard UNI 11254 — Professional kitchen emissions.
12-month warranty for VAT-registered business customers.
24-month warranty for private consumers
under Consumer Code D.Lgs. 206/2005.
Download the full technical datasheet →
Contact us for a free technical consultation →
NEXION is designed for high smoke and grease production environments.
· Steak houses and high-intensity kitchens
· Wood-fired and gas ovens in urban areas
· Industrial fryers and meat processing
· Retrofit on existing activated carbon units of any brand
The filter cells are easily removable and can be washed
in an industrial dishwasher, ultrasonic tank or heated tank
with neutral degreaser. No disposable filters,
no replacement parts to order.
Frequently Asked Questions
How do you clean the NEXION electrostatic filter?
The NEXION filter cells can be removed without tools and washed in an industrial dishwasher (where dimensions allow), in an ultrasonic tank or in a heated tank with water at 40–50°C and 1–2% neutral degreaser. No disposable filters, no replacement parts to order. After washing, reinstall the cells completely dry — never reinstall wet cells.
How often do the NEXION cells need to be washed?
It depends on the position in the ventilation circuit and the type of cooking. In high-intensity kitchens: visual inspection every week, full wash every 2–3 weeks. In a standard professional kitchen: inspection every 2 weeks, wash every 3–4 weeks. When installed downstream of G4/F9 pre-filters the frequency is significantly reduced as the pre-filter captures coarser particles before the electrostatic cells.
Does NEXION also remove odours or only smoke and grease?
NEXION removes both particulate matter (smoke and grease) and odours. The single stage achieves 90% efficiency on particulate and 70% on odours. The double stage reaches 95% on particulate and 80% on odours. For more intensive odour control, NEXION can be combined with an activated carbon filter downstream — the recommended configuration for environments subject to strict emission regulations.
Can NEXION be installed on an existing ventilation system?
Yes. NEXION is designed to integrate at any point in an existing ventilation circuit — before or after activated carbon filters, downstream of the hood or upstream of the fan. It is compatible with systems of any brand. The optimal position depends on the existing layout: contact us for a free technical assessment.
What is the difference between NEXION single stage and NEXION X double stage?
he single stage contains 1 electrostatic filter cell and achieves 90% particulate removal efficiency. The double stage (X series) contains 2 cells in series within the same enclosure — the body is longer but the height is identical — and achieves 95% efficiency. The double stage is recommended for environments with high grease production or stricter emission regulations.
Is NEXION suitable for a charcoal grill kitchen?
Charcoal grill kitchens have very variable characteristics: coal quantities, flue gas temperature, airflow volume, room layout. For this type of application a specific technical assessment is required before sizing any filtration system. Contact us for an analysis of your installation — our technicians will identify the most suitable solution for your situation.
How is the NEXION electrostatic filter cleaned?
The filter cells can be removed without tools and cleaned in a commercial dishwasher (where dimensions allow), in an ultrasonic tank or in a heated bath with water at 40–50 °C and 1–2% neutral degreaser. No disposable filters, no spare parts to order. After cleaning, reinstall the cells dry — do not reinstall wet cells.
Is a qualified electrician required to install NEXION?
For the electrical connection yes — NEXION is powered at 230 V single-phase and internally generates an ionisation voltage with an operating differential between 7,000 and 10,000 V DC across the cell electrodes. The mains connection must be carried out by a qualified electrician with mandatory PE earth bonding. Routine maintenance (cleaning cells) requires no electrical expertise. Before opening the panel: disconnect the power supply, wait 5 minutes, discharge residual charge by making contact between the two potential terminals with a protected insulated screwdriver.
How long is the NEXION warranty?
The warranty is 12 months for VAT-registered customers (professional and commercial use) and 24 months for private consumers under Consumer Code D.Lgs. 206/2005. It covers manufacturing defects and is void in the event of unauthorised intervention, improper use or failure to carry out scheduled maintenance.
Is NEXION approved and compliant with Italian and European regulations?
